CARD M
此系列是專門為重視壓縮空氣和能源消耗最低的客戶而開發的。共有六種大小：40M，70M，110M，160M，225M和375M。所有的乾燥機都可以用作移動式乾燥機，40M和70M也可以直接在壓出機或是任何塑料設備的入料口處直接安裝使用。
Material & Workmanship
- Internal material hopper made of mirror polished stainless steel
- External surfaces made of brushed stainless steel
- Air distributer pipe can be demounted from outside the drying hopper
- Completely insulated drying hopper for drying temperatures up to 200°C
- Hinged lid with safety catch
- Smoothly integrated sight glass
- Carrying handle with crane attachement points
- Service door for easy cleaning (standard on sizes 70M and up)
- Extensive optional accessories

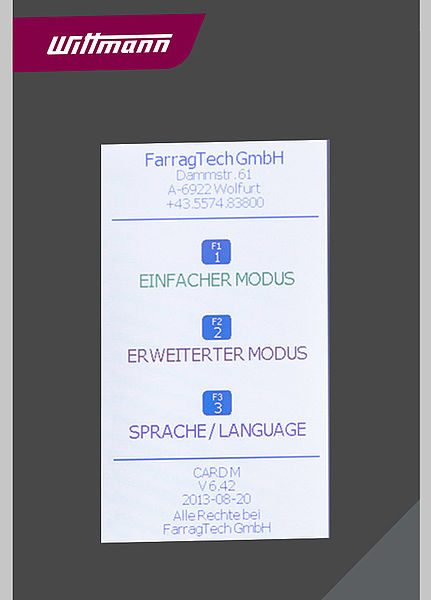

The FIT-controller
The FIT-controller communicates with your systems. Connectivity via diverse interfaces enable the operation and recording of alarms and process data from one or more dryers directly at the production machine. The documentation and traceability of the drying process are thus always assured. Communication via ModbusRTU (RS485) or ModbusTCP (Ethernet) offers the option of integrating the dryers in a production data acquisition system (PDA). Recording of data and the control of various processes via a central control station are just as feasible here as a bidirectional control of the dryers with, for example, central loading systems.
Access to the dryer from inside and outside the company is possible at any time via web client. Information about the current drying process can be queried or changed via the IP address. Of course, a password protects against unauthorized access.
As standard, the FIT control also offers the option of recording all important drying data at regular time intervals via a USB stick.
In 2019, the FIT controller will also be equipped with a touchscreen in addition to the keypad to make operation even more intuitive.
- Precise temperature regulation
- Material friendly SLEEP-Mode
- Intelligent microprocessor controller with colorful graphic display (FIT)
- Strobe light for alarms
- Integrated control for two loaders
- Material friendly RAMP-mode
- Material database (recipes)
- Dada logging
- Diverse interfaces for data transfer and for external control
- COUNTDOWN-mode with possibility for production start signal
- Calendar and weekly timer
- Possibility to recover heat from hot water or oil
- Optional automatic filter cleaning for exhaust air filter
