CARD L/XL

Material & Workmanship

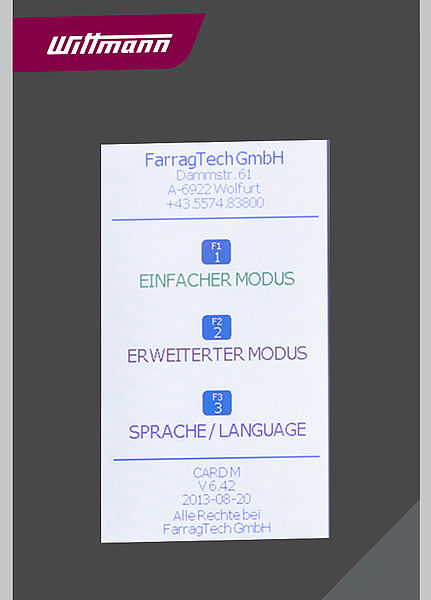

The FIT-controller

The FIT-controller communicates with your systems. Connectivity via diverse interfaces enable the operation and recording of alarms and process data from one or more dryers directly at the production machine. The documentation and traceability of the drying process are thus always assured. Communication via ModbusRTU (RS485) or ModbusTCP (Ethernet) offers the option of integrating the dryers in a production data acquisition system (PDA). Recording of data and the control of various processes via a central control station are just as feasible here as a bidirectional control of the dryers with, for example, central loading systems.

Access to the dryer from inside and outside the company is possible at any time via web client. Information about the current drying process can be queried or changed via the IP address. Of course, a password protects against unauthorized access.

As standard, the FIT control also offers the option of recording all important drying data at regular time intervals via a USB stick.

In 2019, the FIT controller will also be equipped with a touchscreen in addition to the keypad to make operation even more intuitive.
